- Solution for fever detection
- Includes both RGB and thermal cameras
- Includes blackbody calibration source
- No additional PC required
- Software included
- 640 x 512 pixel IR camera
- 0 °C to +50 °C temperature range
- 0.03 °C temperature sensitivity
- ± 0.3 °C measurement accuracy with blackbody in ROI
Features

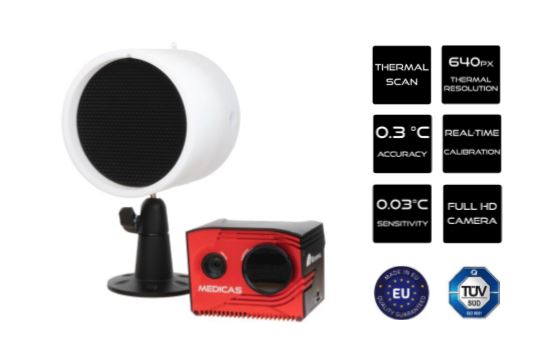

The Workswell Medicas system is a complete thermal camera system designed for accurate and efficient face temperature scanning.
The complete system offers visual and thermal face scanning in real-time with calibration. The system features on-board processing and specialized software, no external PC is required. Accurate and stable temperature meausurement is achieved using the blackbody calibration source featured within the field of view, providing an accuracy of 0.3°C.
| Camera Model | Workswell Medicas |
|---|---|
| IR camera resolution | 640 x 512 pixels |
| Temperature range | 0 °C to +50 °C |
| Temperature sensitivity | 0.03 °C (30mK) |
| Accuracy | ± 0.3 °C (with blackbody calibration source in ROI focused at 4m or 8m) |
| Frame rate | Exportable version worldwide (commercial) or dual use (commercial) |
| Spectral range | 7.5 – 13.5 μm |
| IR sensor type | Uncooled VOx microbolometer |
| Blackbody calibration source | High emissivity 100mm diameter surface with precision digital PID Continuous camera re-calibration every 2s |
| FOV | 45° x 37° |
| Lens | f/1.25 |
| # people per minute | Unlimited - all people are measured in the FOV in real-time |
| RGB camera resolution | 1920 x 1080 pixels, 1/3” sensor for FULL HD images |
| RGB focus | Autofocus |
| Memory | Internal high-speed SSD 256GB for image and video recording, external slot for Micro SD card for taking images |
| Image and video formats | Radiometric JPEG images and Digital camera Full HD JPEG images, digital camera h.264 encode video HD recording, encoded h.264 IR recording |
| Ethernet (RJ-45) port | Video streaming and camera control via MEDICAS SDK TCP/IP server, RTSP server and FTP server available on the camera |
| Aux output interface | Camera digital interface cable for external relay DO unit (4 independent banks with 4 x 2 relay outputs, up to 230 VAC, max. 2A) |
| Micro USB 2.0 port | Mass storage access |
| USB 2.0 port | Direct keyboard connection for MEDICAS camera control |
