- Cooled FPA 1,280 x 720 pixel detector format allowing for efficient measurement of the smallest structures on large-scale objects
- 3.7 MegaPixel MicroScan option
- Full-frame rate up to 120 Hz, up to 1.5 kHz with (320x180) IR pixels
- less than 25 mK thermal resolution
- Rotating filter and Aperture wheel allowing for usage for applications with high object temperatures and in spectral thermography
- Internal trigger interface
- 10 GigE Ethernet Interface for a strong increase in output
Features
Documents

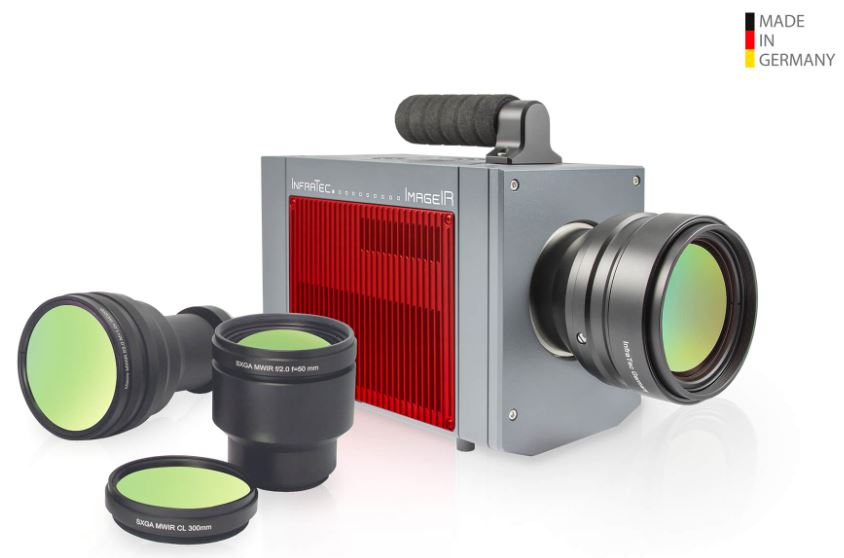

The InfraTec ImageIR 9500 is a highly sensitive cooled focal plan array photon detector based on mercury cadmium telluride (MCT) providing 1,280x720 IR pixels. The geometrical resolution can be further increased to 2,560 x 1,440 IR pixels with InfraTec's MicroScan function.
Due to the outstanding thermal sensitivity up to 0.025 K, users can create low-noise, fine-resolution images using the quadruplication of the image formats.
The ImageIR 9500 impresses with extremely short integration times in the microsecond range and very high frame rates of 120Hz, which increases to 1,500Hz in sub-frame with (320x180) IR pixels.
Suitable for highly demanding applications in science, industry, object monitoring and microthermographic analysis of extremely small strucutres, the camera is equipped with an integrated 10 GigE interface that enables data exchange at a speed of 10 Gbps.
Multiple lens options available includuing standard, telephoto, supertelephoto, close-up telephoto and microscopic lenses.
| Camera Model | ImageIR 9500 |
|---|---|
| Spectral range | 3.5 - 4.8 µm |
| Pitch | 12 µm |
| Detector | MCT |
| Detector format (IR pixels) | 1,280 x 720 |
| Image format with opto-mechanical MicroScan (IR pixels) | 2,560 x 1,440 |
| Image acquisition | Snapshot |
| Readout mode | ITR/ IWR |
| Aperture ratio | f/2.0 |
| Detector cooling | Stirling cooler |
| Temperature measuring range | -20 - 1,200°C, up to 2,000°C |
| Measurement accuracy | ± 1 °C or ± 1 % |
| Temperature resolution @ 30°C | Better than 0.025 K |
| Frame rate (full/half/quarter/sub frame) | Up to 120 Hz/ 446 Hz/ 1,517 Hz/ 16,053 Hz |
| Window mode | Yes |
| Focus | Manually, motorised or automatically |
| Dynamic range | 14 bit |
| Integration time | 1 - 20,000 μs |
| Rotating aperture wheel and filter wheel | Up to 5 positions |
| Interfaces | 10 GigE, GigE, 2x CAMLink, HDMI |
| Trigger | 3 IN / 2 OUT, TTL |
| Analogue signals, IRIG B | 2 IN / 2 OUT, yes |
| Tripod adapter | 1/4" and 3/8" photo thread, 2x M5 |
| Power supply | 24 V DC, wide-range power supply (100-240)V AC |
| Storage and operation temperature | (-40 … 70) °C, (-20 … 50) °C |
| Protection degree | IP54, IEC 60529 |
| Dimensions, weight | (241 x 123 x 160)mm; 4.7 kg (without lens) |
| Analysis and evaluation software | IRBIS 3, IRBIS 3 View, IRBIS 3 Plus, IRBIS 3 Professional, IRBIS 3 Control, IRBIS 3 Online, IRBIS 3 Process, IRBIS 3 Active, IRBIS 3 Mosaic, IRBIS 3 Vision |
