- Compliance with NEC Class I, Div 1 & 2 Groups B, C & D, Class II, Div 1 & 2 Groups E, F & G, Class III
- UL Classified
- CSA Certified – Standard C2 No. 30-M1984
- CENELEC approval
- NEMA 3, 4X, 7 & 9
- Cast aluminum construction
- Two 3/4″ NPT fittings for cable conduit

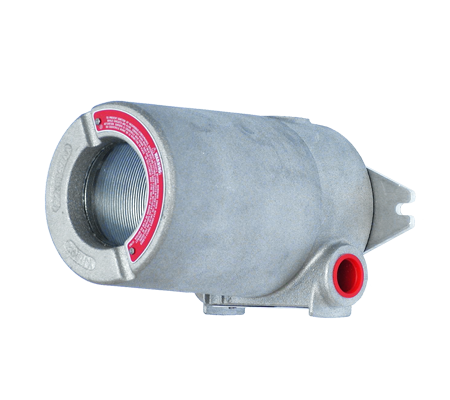

The C3 explosion proof enclosure offers compliance with NEC Class I, Groups B, C and D and Class II, Groups E, F and G. These Classifications and Groups are covered in Article 500 of the National Electrical Code.
The enclosure is also NEMA 4X rated, allowing use in a salt-water washdown environment.
The C3 Series will accommodate larger diameter cameras and ringlights.
The C3 enclosure includes two 3/4″ NPT tapped holes for conduit attachment. Additional conduit entry can be added if factory instructions are followed.
