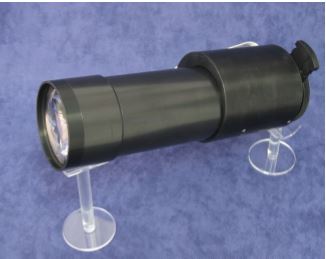

The UV Zoom Lens custom designed by Channel Systems Inc provides a versatile solution for telephoto UV imaging!
With a motorized zoom and focus as well as a high light throughput, this lens is ideal for both hand held and remote applications.
The lens features a two position filter holder allow the user to use the lens in UV mode or full visible spectrum mode. The filters can also be tailored for specific user requirements.
| Focal Length | 80-200mm |
|---|---|
| Aperture | f/3.2 |
| Object distance | 3m to infinity |
| Field of view | @13m, 0.7m - 1.75m |
| Wavelength range | Filter 1: 270-350, Filter 2: 350-700nm |
| Length | 250mm |
| Focus and zoom | Motorized |
| Weight | 1235g |
| Operating temp | 10 - 55°C |
