- 2 year warranty
- Uncooled 12 μm pitch microbolometer detector
- 640x480 pixel resolution
- Less than 60 mK NETD
- Low SWaP (Size, Weight and Power)
- GenICAM compliant
- Shutterless and uncooled operation
- Availability of multiple lenses adds flexibility to integration programs
Features
The Xenics Dione 640 is a series of LWIR thermal imaging cores optimized to meet today’s increased demand for smaller size, lower weight and lower power (SWaP).
Based on an uncooled 12 μm pitch microbolometer detector with a resolution and NETD of less than 60 mK, it is a cutting edge LWIR core for the safety and security market as well as industrial applications.
There are two lines available within this series, the OEM series and the CAM series!

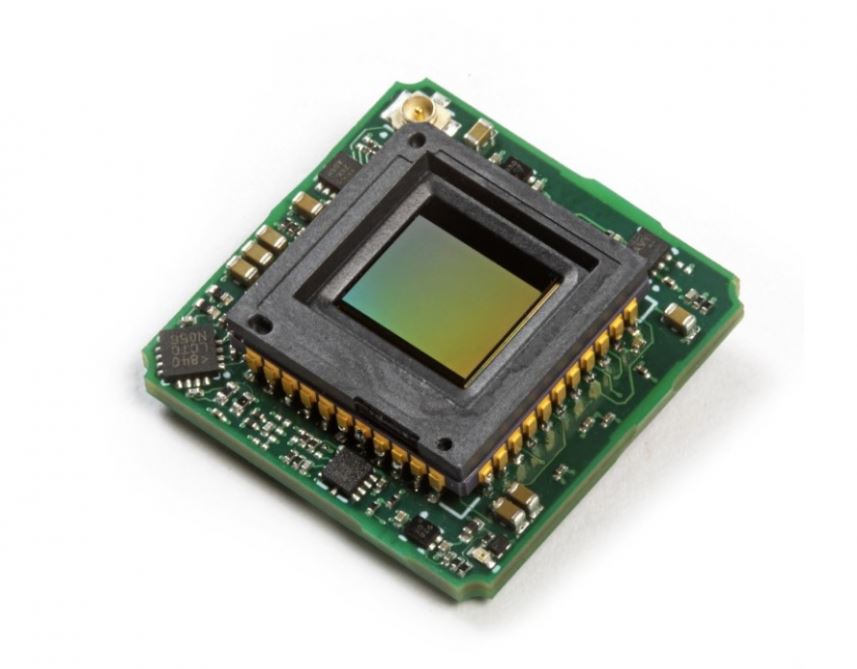

The overall size of the OEM core is 25 x 25 x 10 mm3 and weight is 6 gr. It utilizes Xenics image enhancement for advanced image processing while keeping power consumption low.
All Dione 640 versions have the same SAMTEC ST5 connector and are GenICAM compliant.
The Dione 640 CAM M24 and M34 are available with multiple lens configurations.
The ultra-compact Dione 640 series find application in safety and security systems, as well as in industrial thermal imaging systems.
The Dione 640 evaluation kit includes the Dione-OEM, evaluation board (converts output to standard CL), sensor-to-evaluation cable, power adaptor and cord for evaluation board, USB2 cable, CL cable and lens.
| Camera Model | Dione 640 OEM | Dione 640 CAM M24 | Dione 640 CAM M34 |
|---|---|---|---|
| Image format | 640x480 | 640x480 | 640x480 |
| Pixel pitch (um) | 12 | 12 | 12 |
| Detector type | a-Si microbolometer | a-Si microbolometer | a-Si microbolometer |
| Integration type | Rolling shutter | Rolling shutter | Rolling shutter |
| Active area and diagonal (mm) | 7.68 x 5.76 (diagonal 9.6) | 7.68 x 5.76 (diagonal 9.6) | 7.68 x 5.76 (diagonal 9.6) |
| Detector NETD (mK) | <60 (at 30 Hz, 300 K, F/1) | <60 (at 30 Hz, 300 K, F/1) | <60 (at 30 Hz, 300 K, F/1) |
| Spectral range (um) | 8-14 | 8-14 | 8-14 |
| Pixel operability | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) | >99.5% (excluding 3 peripheral rows and columns) |
| Max frame rate (Hz) (Full frame) | 60 | 60 | 60 |
| Integration time range (us) | 20-65 | 20-65 | 20-65 |
| Region of interest | Yes | Yes | Yes |
| Min region size (pixels) | 80 x 80 | 80 x 80 | 80 x 80 |
| Analog to Digital (ADC) (bits) | 14 | 14 | 14 |
| Command and control | SAMTEC ST5 connector | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Digital output format | 16 bit (compatible with CameraLink) | 16 bit (compatible with CameraLink) | 16 bit (compatible with CameraLink) |
| Trigger | SAMTEC ST5 connector | SAMTEC ST5 connector | SAMTEC ST5 connector |
| Ambient operating temperature range (°C) | From -40 to +70 | From -40 to +70 | From -40 to +70 |
| Storage temperature (°C) | From -45 to +85 | From -45 to +85 | From -45 to +85 |
| Power consumption (W) | 0.8 | 0.8 | 0.8 |
| Power supply voltage | DC 5 V | DC 5 V | DC 5 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g (20 to 2000 Hz), MIL-STD810G | 5 g (20 to 2000 Hz), MIL-STD810G | 5 g (20 to 2000 Hz), MIL-STD810G |
| Regulatory compliance | RoHS | RoHS | RoHS |
| Dimensions (width x height x length) (mm) | 25 x 25 x 10 | 31 x 31 x 22 | 40 x 40 x 24 |
| Weight (g) - excluding lens | 6 | TBD | TBD |
| Optical Interface | M24 x 0.5 | M34 x 0.5 | |
| Connector general I/O | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR | SAMTEC ST5-30-1.50-L-D-P-TR |
