- Calibration of a multitude of calibration curves for precise temperature measurement
- Detection of smallest details with detector of 640 x 512 infrared pixels
- Snapshot detector with short integration times
- Modular concept for high flexibility
- Precise long-time measurements without shutter
Features

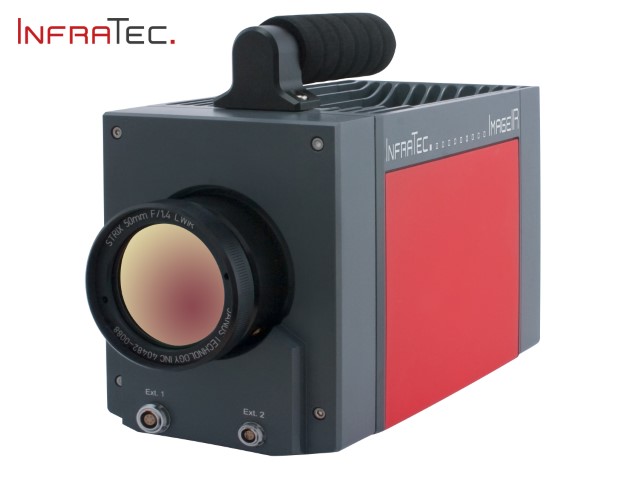

A high long-term stability of the thermographic measurement with infrared camera systems of the ImageIR® 8800 series is achieved without any shutter by an excellent thermal decoupling of the electronics module which will emit heat during its operation from the optical and detector module being most important for the signal receipt. Also external temperature changes is being taken care of by a multitude of calibration curves and internal calibration routines.
| Spectral Range | 7.7 - 10.2 µm |
| Pitch | 15 µm |
| Detector | MCT |
| Detector Format (IR pixels) | 640 x 512 |
| Image format with opto-mechanical MicoScan (IR pixels) | 1,280 x 1,024 |
| Image Acquisition | Snapshot |
| Readout Mode | ITR |
| Aperture Ratio | f/2.0 |
| Detector Cooling | Stirling cooler |
| Temperature Measuring Range | -40 - 1,200 °C |
| Measurement Accuracy | ± 1 °C or ± 1% |
| Temperature Resolution @ 30°C | Better than 0.025 K |
| Frame Rate (full/half/quarter/sub frame) Depending on Model | Up to 233/874/2,892/14,593 Hz |
| Window Mode | Yes |
| Focus | Manually, motorised or automatically depending on model |
| Dynamic Range | 16 bit |
| Integration Time | 10 - 20,000 µs |
| Rotating Filter Wheel Depending on Model | Up to 5 positions |
| Rotating Aperture Wheel Depending on Model | Up to 5 positions |
| Multi Intergration Time Depending on Model | Yes |
| Interfaces | GigE, 10GigE (depending on model), 2X CamLink (depending on model), HDMI (depending on model) |
| Trigger | 3 IN/2 OUT, TTL |
| Analalogue Signals or IRIG B Depending on Model | 2 IN/2 OUT, yes |
| Tripod Adapter | 1/4" and 3/8" photo thread, 2 X M5 |
| Power Supply | 24 V DC, wide-range power supply ) 100-240 V AC |
| Storage and Operation Temperature | -40 - 70°C, -20 - 50°C |
| Protection Degree | IP54, IEC 60529 |
| Dimensions, Weight | 250 x 120 x 160 mm, 4.0 kg without lens |
