- Image Format: 2,048 x 1,536 IR pixel optomechanical MicroScan feature
- Recording and storage of IR frames rates with up to 240 Hz
- GigE- and process interface
- Rugged light metal housing IP67 depending on model

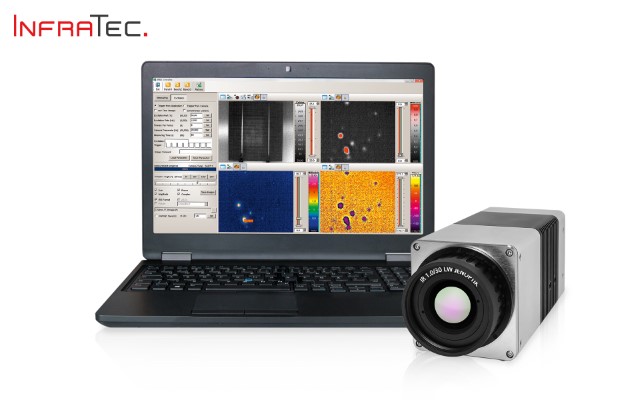

With its 3.1 megapixels in IR-format the worldwide unique infrared system VarioCAM® HD head 900 gives a new definition to the premium segment of uncooled industrial cameras and guarantees for precise infrared recordings in brilliant photographic quality.
The MicroScan technology works opto-mechanical and is designed for permanent operation. Due to FPA detectors of the latest generation with (1,024 × 768) IR pixels, this technology allows for a quadruplication of IR measurement pixels. They show real temperature values but not interpolated pixels. This opens up several new fields of application. Old measurement tasks become more efficient and therefore, valuable working time and costs are saved. Large-scale or far-flung measurement objects can now be recorded in one, fast, precise and complete recording due to the unique MicroScan technology.
Camera Model | VarioCAM® HD head 900 |
---|---|
Spectral Range | 7.7 - 14 µm |
Detector | Uncooled Microbolometer Focal Plane Array |
Detector Format IR Pixels | 1,024 x 768, with built-in opto-mechanical high-precision scan unit 2,048 x 1,536 depending of model |
640 x 480, with built-in opto-mechanical high-precision scan unit 1,280 x 960 depending on model | |
Temperature Measuring Range | -40 - 2,000 °C |
Measurement Accuracy | ±1°C or ±1% depending of model |
Temperature Resolution @ 30°C | Up to 0.02 K depending on model |
Frame Rate | Full-frame: 30Hz 1,024 x 768, sub-frame formats depending on model |
60Hz 640 x 480/ 120 Hz, 384 x 288/240 Hz 1,024 x 96 | |
Full-frame: 60 Hz 640 x 480, sub-frame formats depending on model | |
120 Hz 384 x 288/240 Hz 640 x 120 | |
Storage Media | SDHC Card, external control computer for camera control and data acquisition depending on model |
Image Storage | Time-, trigger-, and temperature controlled recording of 16 bit sigle frames or image sequences with timestamp, videa streaming in MPEG format |
Realtime Storage Depending on Model | Computer-aided storage of radiometric sequences by GigE interface with up to 240 Hz |
Lens Mount | Bayonet to comfortably switch objectives, automatic objective detection and data transfer; screw-on interface depending on model |
Focus | Motor-driven, automatic or manual, accurately adjustable |
Zoom | Up to 32x digital, stepless |
Dynamic Range | 16 bit |
Interfaces; Trigger Depending on Model | GigE Vision depending on model, DVI-D (HDMI), C-Video, RS232, USB 2.0, WLAN depending on model; 2x digital I/O, 2x analogue I/O |
Tripod Adapter | 1/4" photo thread |
Power Supply | AC adapter, 12-24 V DC, PoE depending on model |
Storage and Operation Temperature | -40 - 70 °C, -25 - 55°C |
Protection Degree | IP54, IEC 60529, IP67 with screw-on interface depending on model |
Impact Strength/Vibration Resistance in Operations | 25 G IEC 68-2-29, 2G IEC 68 - 2 -6 |
Dimensions; weight | 221 x 90 x 94 mm; 1.15 kg basic configuration with standard lens |
Further Functions | Camera internal emissivity correction, shutter free operation, use of various colour sets, contrast enhancement, user profile, language selection |
