- 2 year warranty
- line rates of up to 256 kHz
- 3 different resolution options of 512, 1024 or 2048 pixels
- suitable for spectroscopy and spectral-domain optical coherence (OCT)
- low noise, low dark current
- high resolution
- CoaXPress interfacing
Features
Applications
- Spectroscopy
- Spectral-domain optical coherence tomography
Documents

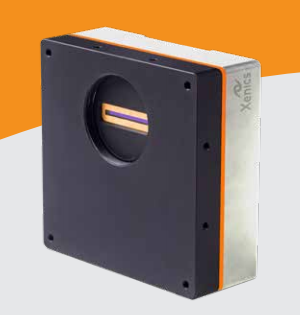

Based on the brand new, in-house developed InGaAs linear detector, the Manx rectangular (R) is a high-performance short-wave infrared (SWIR) camera providing high speed and quality linescan imaging. At unprecedented line rates of up to 256 kHz (or 128 kHz), the Manx rectangular (R) stands as the fastest linescan InGaAs camera available in the world.
The use of CoaXPress interfacing enables fast and reliable data transfer. The Manx rectangular (R) is offered in 3 different resolutions of 512, 1024 or 2048 pixels.
| Camera Model | Manx 512 R CXP 130/260 | Manx 1024 CXP 130/260 | Manx 2048 CXP 130/260 |
|---|---|---|---|
| Sensor format (pixels) | 512 pixels | 1024 pixels | 2048 pixels |
| Pixel pitch (um) | 12.5 | 12.5 | 12.5 |
| Pixel height (um) | 250 | 250 | 250 |
| Detector type | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC | InGaAs photodiode array with CTIA ROIC |
| Sensor temperature stabilization | TE cooler | TE cooler | TE cooler |
| Integration type | Snapshot - global shutter | Snapshot - global shutter | Snapshot - global shutter |
| Spectral range (nm) | 900-1700 | 900-1700 | 900-1700 |
| Quantum efficiency | ~80% [typical peak value] | ~80% [typical peak value] | ~80% [typical peak value] |
| Gain modes | 4 different gain modes selectable: 100x [HG], 20x [MG], 5x [ML], 1x [LG] | 4 different gain modes selectable: 100x [HG], 20x [MG], 5x [ML], 1x [LG] | 4 different gain modes selectable: 100x [HG], 20x [MG], 5x [ML], 1x [LG] |
| Full well capacities [electrons] | 290k; 1.6M; 8.1M; 35M | 290k; 1.6M; 8.1M; 35M | 290k; 1.6M; 8.1M; 35M |
| Read noise [electrons] | 350 [HG]; 700 [MG]; 2600 [ML]; 12000 [LG] | 350 [HG]; 700 [MG]; 2600 [ML]; 12000 [LG] | 350 [HG]; 700 [MG]; 2600 [ML]; 12000 [LG] |
| Pixel operability | >99.6% | >99% | >98% |
| Max line rate (kHz) | 128 [“130” version], 256 [“260” version] | 128 [“130” version], 256 [“260” version] | 128 [“130” version], 256 [“260” version] |
| Analog-to-Digital [ADC] [bits] | 14 | 14 | 14 |
| Command and control | CoaXPress | CoaXPress | CoaXPress |
| Digital output format | CoaXPress [16 bit] | CoaXPress [16 bit] | CoaXPress [16 bit] |
| Operating case temperature [°C] | From -40 to +60 | From -40 to +60 | From -40 to +60 |
| Storage temperature [°C] | From -40 to +85 | From -40 to +85 | From -40 to +85 |
| Power consumption [W] | Up to 11 [without TEC] | Up to 11 [without TEC] | Up to 11 [without TEC] |
| Approximate dimensions - excluding lens [width x height x length] [mm] | 102 x 102 x 40 | 102 x 102 x 40 | 102 x 102 x 40 |
| Weight [gr] - excluding lens | 900 | 900 | 900 |
| Optical interface | C-mount or M42 [M42 to F-mount adapter optional] | C-mount or M42 [M42 to F-mount adapter optional] | C-mount or M42 [M42 to F-mount adapter optional] |
| Connector CXP | 4 connectors - type DIN 1.0/2.3 | 4 connectors - type DIN 1.0/2.3 | 4 connectors - type DIN 1.0/2.3 |
| Connector power | Only PoCXP | Only PoCXP | Only PoCXP |
