- 2 years warranty
- Low NETD detector for high sensitivity
- 2 versions available: basic 100 Hz and advanced 400 Hz
- Flexible and easy-to-use
- Ethernet standard interfaces
- Fast time to market with easy integration
- Various lens and filter options with C-mount interfaces available
- Windowing mode
- CameraLink version compatible with a variety of framegrabbers
- IR camera software (Xeneth) included
- External trigger for signal synchronization
Features
Applications
- Food inspection
- Laser beam profiling
- Quality control and quality assurance
- Semiconductor inspection
- Thermal imaging of hot objects (300 °C to 800 °C range)
- Waste sorting

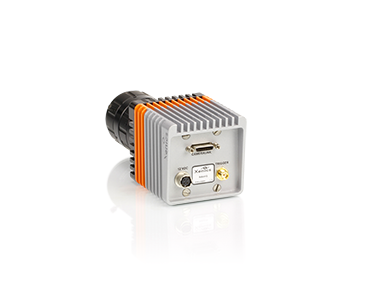

The Bobcat-320 is a small, high performance shortwave infrared camera. Its thermoelectric cooler ensures excellent low noise and low dark current characteristics.
The Bobcat-320 targets cost-sensitive volume markets such as laser beam analysis applications, sorting & recycling industry and investigation of defects inside silicon semiconductor material. This shortwave infrared camera comes with a CameraLink or GigE Vision interface and has a low weight, low power consumption and is small in size.
With the Bobcat-320 SWIR camera you can look through glass, so the use of standard available C-Mount lenses and protective camera housings is no problem. Again making this infrared camera affordable for a wide variety of industrial applications.
| Camera Model | Bobcat-320-CL | Bobcat-320-GigE |
|---|---|---|
| Array type | InGaAs | InGaAs |
| Spectral band | 0.9 μm to 1.7 μm | 0.9 μm to 1.7 μm |
| Resolution | 320 x 256 | 320 x 256 |
| Pixel pitch | 20 μm | 20 μm |
| Array cooling | TE1-stabilized | TE1-stabilized |
| Full well capacity | 125 k e- | 125 k e- |
| Pixel operability | > 99 % | > 99 % |
| Optical interface | C-mount | C-mount |
| Maximum frame rate (full frame) | 100 Hz or 400 Hz | 100 Hz or 400 Hz |
| Window of interest | Minimum size 32x4 (only for 400 Hz model) | Minimum size 32x4 (only for 400 Hz model) |
| Exposure time range | 1 µs to 40 ms | 1 µs to 40 ms |
| Dynamic range | 61 dB | 61 dB |
| ADC | 14 bit | 14 bit |
| Camera Control | CameraLink | GigE Vision |
| Digital output | 14 bit CameraLink | 14 bit GigE |
| Trigger | Trigger in or out (configurable) | Trigger in or out (configurable) |
| Power consumption | 2.8 W | 4 W |
| Power supply | 12 V | 12 V |
| Ambient operating temperature range | -40ºC to 70ºC (industrial components) | -40ºC to 70ºC (industrial components) |
| Dimensions (W x H x L mmᵌ) | 55 x 55 x 72 | 55 x 55 x 82 |
| Weight camera head | 285 g | 334 g |
