- Spectral Resolution: 12 nm
- Spatial Resolution: 384 pixels
- Frame Rate: 450 fps (full)
- Sensor: Cryogenically cooled MCT

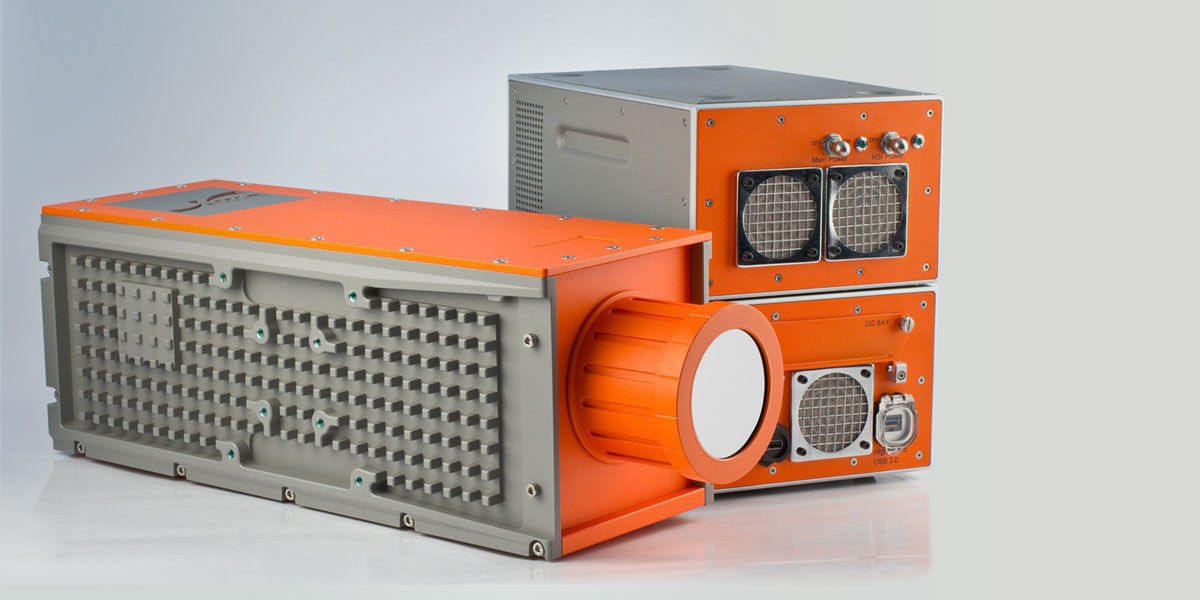

SPECIM launches a new fully redesigned and re-engineered hyperspectral SWIR camera with breakthrough features.
Specim’s new high-speed hyperspectral camera in the SWIR range (1000 – 2500 nm) has more spatial pixels (384) and still achieves much faster image rates up to 400 frames per second using CameraLink connection.
To assure indoor/outdoor usage in varying conditions it now has rugged weather-proof IP54 casing and temperature stabilized optics but still uses less power than before, only 50W nominal.
With its temperature stabilized optics, it provides the stability and sensitivity required in today’s most challenging nearinfrared chemical imaging applications, from pharmaceutical quality assurance to food and agriculture analysis. The camera meets the highest requirements in lab, industry and field.
Spectral Range | 1000 - 2500 nm |
---|---|
Spectral Resolution FWHM | 12 nm (30 µm slit) |
Spectral Sampling | 5.6 nm |
Spatial Resolution | rms spot radius < 15 µm |
F/# | F/2.0 |
Slit Width | 30 µm (50 or 80 µm option) |
Effective Slit Width | 9.2 mm |
Detector | Cryogenically cooled MCT detector |
Spatial Pixels | 384 |
Spectral Bands | 288 |
Pixel Size | 24 x 24 µm |
Detector Cooling | Stirling, 25000 h MTTF |
Optics Temperature Stabilization | Yes |
Camera Output | 16 bits CL |
SNR | 1050:1 (at max. signal level) |
Data Cable | Length 5 meters |
Frame Grabber | National Instruments NI 1427 |
Camera Control | USB/ RS232 |
Frame Rate | 450 fps (maximum full frame) |
Exposure Time Range | 0.1 - 20 ms |
Power Consumption | Nominal < 50 W |
Input Voltage | Wide 24 V |
Body | Anodized aluminum with mounting screw holes |
Lens Mount | Standard C-Mount |
User Adjustments | None |
Shutter | Electro-mechanical shutter for dark image acquisition |
Storage | -20...+50ºC |
Operating | +5...+40ºC, non-condensing |
LUMO support | Yes |
SDK support | Yes |
Mounting | Standard mounting - see datasheet for illustration |
Accessories | Lenses, radiometric calibration, white calibration tile, scanner stages |
