- Up to 224 spectral bands
- Spatial sampling: 1024 pixels
- Up to 330 fps frame rate
- High data quality
- Compact and lightweight all-in-one solution
- Easy to mount and operate
- Direct georeferencing available
Features
Applications
- Vegetation classification and Species Identification
- Water Quality Analysis
- Wetlands Monitoring
- Wildlife Population Study
Data Acquisition
- Efficient use of light together with image enhancement algorithm results in high data quality
- Fully automated data acquisition following the mission flight plan
- Freely selectable spectral bands allow focusing on application relevant data
Integration
- All in one casing, minimal cabling
- Fits various UAVs: multirotor or fixed-wing, with or without gimbal
Services

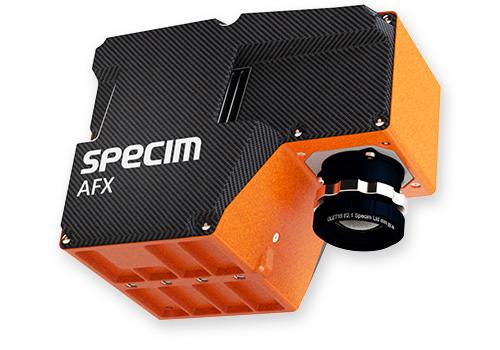

The Specim AFX10 is a VNIR hyperspectral imaging solution featuring an HSI camera, small and powerful computer, and a high end GNSS/IMU unit in one compact enclosure!
It is a state of the art solution weighing only 2.1kg that can be used on multiple drone types - multirotor or fixed wing, with or without a gimbal. Data is acquired automatically following the waypoints on a flight plan, making the AFX10 easy to operate.
| Spectral Camera | AFX10 | |
|---|---|---|
| Spectral range | 400-1000 nm | |
| Spectral sampling | 2.68 nm | |
| Spectral resolution | 5.5 nm | |
| Fore lens focal length | 15 mm | |
| Field of view | 38 deg | |
| F/# | 1.7 | |
| Spectral bands | 224 | Binned by 2 |
| Spatial pixels | 1024 | |
| Spectral binning options | 2, 4, 8 | |
| Spatial binning options | 1, 2 | |
| Multiple ROI | User-selectable | |
| Maximum frame rate | 330 fps | Full frame |
| Dynamic range | 1420 | |
| SNR | 400:1 | 2 spectral binning, 1 spatial binning |
| Power input | 9-36 VDC | Use supplied battery or drone/ gimbal power |
| Power consumption | 17 W | Typical |
| Connectors | Power In, Antenna, Ethernet | |
| Storage temperature | -20 … +50C | |
| Operating temperature | +5 … +40C | |
| Relative humidity | 5-90% | Non-condensing |
| Drone options | Multirotor with gimbal, multirotor, no gimbal fixed wing UAV | Any drone with adequate payload capacity can be used |
| Gimbal | Optimized for MoVI pro | Other suitable gimbals may also be used |
| Gimbal weight | 2.2 - 2.5 kg | Typical gimbal solution |
| Operating height | 15-150 m | Typical, local limitations may apply |
| GNSS/IMU | Trimble APX-15 | |
| GPS Antenna | Trimble AV 14 | |
| Dimensions (W x H x L) | 131 x 152 x 202 mm | |
| Weight (without gimbal) | 2.1 kg | |
| Weight (with gimbal) | ~4.5 kg |
