- Automatic Image Stabilization, even at night and in adverse visibility conditions
- Designed with high-quality components for efficient stationary use 24 hours a day
- Configurable due to various equipment options
- Automatic threshold detection and signalling
- Digital real-time image acquisition via Gigabit Ethernet
- ATEX-compliant protective housing available for lasting reliability and precision
Features
Applications
- Security of large outdoor and safety areas
- Environmental monitoring
- Animal observation
- Hotspot detection for fire prevention
- Port facility monitoring
Data Sheet

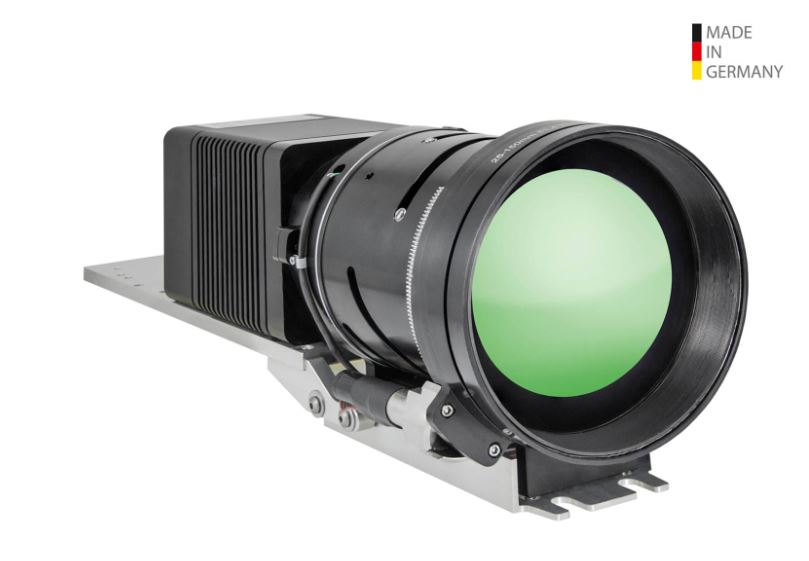

The VarioCAM HD Z by InfraTec is the world's first commercially available radiometric microbolometer camera providing a motorized 6X Infrared zoom lens for the spectral range of 7.5 - 14 μm. Equipped with an uncooled FPA detector, it provides brilliant 16 bit thermal images of the highest quality with 1,024 x 768 IR pixels.
The combination of HD format thermal images and the continuous zoom lens results in an unprecendented attention to detail for the user.
Features a high performance zoom lens with a 25 - 150mm focal length.

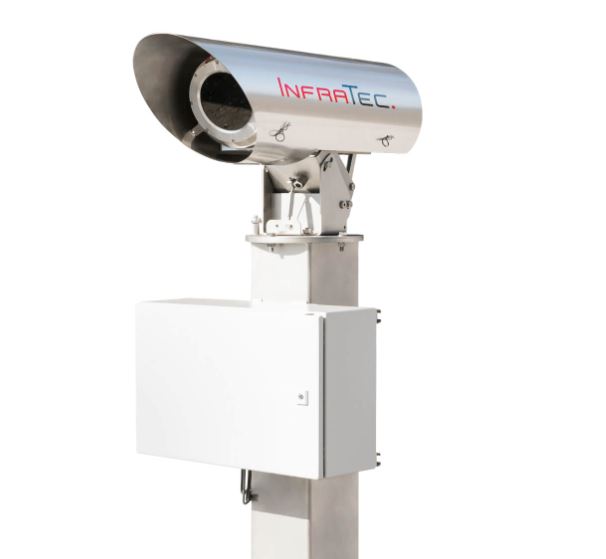

In hazardous areas, where installation demands additional requirements to protect the thermographic camera, ATEX-compliant protecting housings ensure lasting reliability and precision.
| Camera Model | VarioCAM HD Z |
|---|---|
| Spectral range | 7.5 - 14 µm |
| Pitch | 17 µm |
| Detector | Uncooled microbolometer focal plane array |
| Detector format (IR pixels) | 1,024 x 768 pixels |
| Aperture ratio | f/1.4 |
| Temperature measurement range | -20 - 550°C, up to 1,200°C |
| Measurement accuracy | ± 5 °C or ± 5 % |
| Temperature resolution @ 30°C | Better than 0.1K |
| Frame rate | Full frame: 30 Hz, sub frames: 60Hz (640x480)/ 120Hz (384x288)/ 240Hz (1,024 x 96) |
| Storage media | External control computer for camera control and data acquisition |
| Image storage | Time-, trigger- and temperature controlled recording of 16 bit single frames or image sequences with timestamp |
| Focus | Motor-driven, accurately adjustable |
| Zoom optical/ digital | 6X stepless / up to 32x |
| Lens focal length | 25 - 150mm |
| Field of view | 41.5° @ 25 mm … 6.6° @ 150 mm (HFOV) |
| Minimum object distance | 500 mm @ 25mm, 1,300mm @ 150mm |
| Dynamic range | 16 bit |
| Interfaces | GigE Vision compatible, RS232, Trigger (TTL) |
| Tripod adapter | 1/4" photo thread |
| Power supply | 12 - 15 V DC |
| Storage and operation temperature | -40 - 70°C, -25 - 50°C |
| Dimensions (incl. mounting support); weight | (402 x 14 x 148)mm, 3.4 Kg |
| Further functions | Camera internal emissivity correction, use of various colour sets, contrast enhancement, user profile, language selection |
| Analysis and evaluation software | IRBIS 3 online, IRBIS 3 plus, IRBIS 3 professional |
