- Uncooled microbolometer FPA detector
- 640 x 480 IR pixels
- Comprehensive control and analysis software
- 25 Hz max full frame rate
- ≤60 mK thermal resolution
- Extremely small and robust light weight metal housing

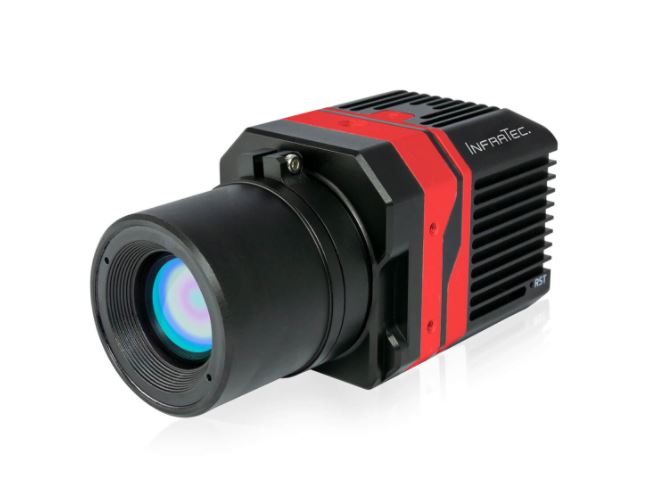

The PIR uc 605 is InfraTec's new entry level stationary thermal imaging camera for industry and research!
This radiometric infrared camera module is designed for universal use and enables the entry into stationary thermal imaging for research and development, as well as process optimization.
Based on an uncooled microbolometer FPA detector with 640 x 480 IR pixels, it supports easy integration into existing systems with it's low weight, very small and robust light metal house, and available SDK.
With the PIR uc 605, users can choose between a variety of different lenses. This allows the camera to be optimally adapted to the respective measurement task. It's modern interface concept allows convenient camera control and data acquisition. Images can be stored and processed in real time on a PC via the Ethernet interface at image frequencies of up to 25 Hz.
In combination with InfraTec's control and analysis software solutions of the IRBIS 3 family, PIR uc 605 is a versatile tool for numerous monitoring and measurement tasks in production as well as for computer-aided laboratory applications.
|Spectral range||8-14 µm|
|Detector||Uncooled Microbolometer Focal Plane Array|
|Detector format (IR pixels)||640 x 480|
|Temperature measuring range||-20 - 400°C, up to 1,000°C|
|Measurement accuracy||± 5 K (0 … 100) °C, ± 5 % (< 0 respectively > 100) °C|
|Temperature resolution @ 30°C||≤ 0.06 K|
|Frame rate||25 Hz (640 x 480)|
|Image storage||To hard disk (Notebook)|
|Interfaces||Ethernet RJ45, 100 BaseT|
|Trigger||Software - Trigger|
|Tripod adapter||1/4 " photo thread|
|Power supply||12 (9 - 15)V DC|
|Storage and operation temperature||- 45 to 65°C, -20 to 60°C|
|Dimensions; weight||(55.8 x 44 x 46) mm; < 110g (each without lens)|
|Analysis and evaluation software||IRBIS 3 Plus, IRBIS 3 Professional, IRBIS 3 Online, SDK V4 (LabVIEW MATLAB)|
