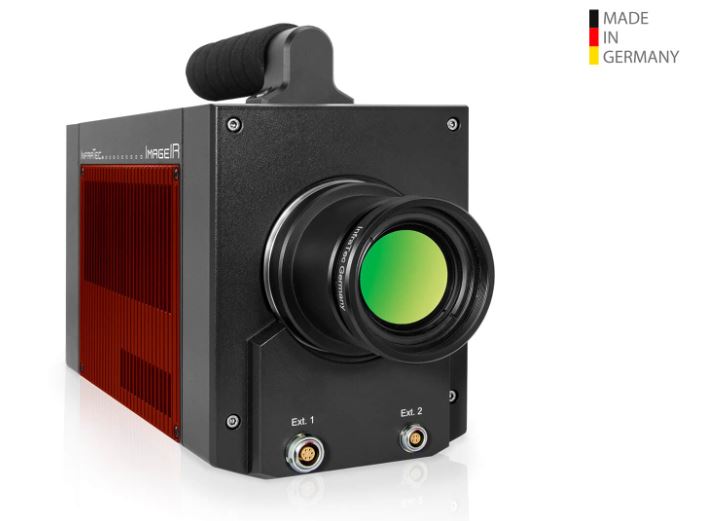

ImageIR 9400

To analyse the thermal behavior of objects and processes from a wide variety of perspectives, InfraTec introduces ImageIR® 9400. The camera is equipped with a new generation cooled focal-plane array photon detector that provides a format of (1,280 × 1,024) IR pixels.

Besides the standard mode users can choose a high-speed mode utilising binning technology. Due to a reduced number of pixels but the same field of view (FOV) this enables very high frame rates up to 622 Hz and an excellent thermal resolution at the same time.

ImageIR® 9400 was developed for demanding operations in research and development, non-destructive testing and process monitoring. Its modular structure, which consists of optical, detector and interface modules, makes it easily adaptable to the respective application. An integrated trigger interface guarantees a repeatable high-precision triggering of quick procedures. Multiple configurable digital in- and outputs serve as control ports for the camera or as generator of control signals for external devices. The optical channel consists of exchangeable infrared lens systems as well as application specific apertures, filters and optical elements.

The exchangeable radiometric precision lenses of the ImageIR® 9400 can be combined with a motorised focus unit, which is operated from the camera‘s application software. It allows quick, precise and remotely controllable motorised focusing.

InfraTec ImageIR 9400 Technical Specifications
Camera ModelImageIR 9400
Spectral range(2.0 … 5.5) µm or (3.6 … 4.9) µm
DetectorInSb
Detector format (IR pixels)1,280 x 1,024
Image format with opto-mechanical MicroScan (IR pixels)2,560 x 2,048
Image acquisitionSnapshot
Readout modeITR/ IWR
Aperture ratiof/2.2 or f/3.0
Detector coolingStirling cooler
Temperature measuring range(-40 … 1,500) °C, up to 2,000 °C
Measurement accuracy± 1 °C or ± 1 %
Temperature resolution @ 30°CUp to 0.03K/ up to 0.02K in high-speed mode
Frame rate (full/half/quarter/sub frame)Up to 180/342/622/2,601 Hz; high-speed mode: up to 622/1,053/1,615/3,343 Hz
Window modeYes
FocusManually, motorized or automatic
Dynamic rangeUp to 16 bit
Integration time1 - 20,000 μs
Rotating aperture wheelUp to 5 positions
Rotating aperture wheelUp to 5 positions
Interfaces10 GigE, HDMI, GigE, CAMLink
Trigger3 IN / 2 OUT, TTL
Analogue signals, IRIG-B3 IN / 2 OUT, yes
Tripod adapter1/4" and 3/8" photo thread, 2x M5
Power supply24V DC, wide-range power supply (100-240)V AC
Storage and operation temperature(-40 - 70)°C, (-20 - 50)°C
Protection degreeIP54, IEC 60529
Dimensions, weight(241 x 123 x 160) mm; 4.3 kg (without lens)
Further functionsHigh-speed mode, Multi Integration Time
Analysis and evaluation softwareIRBIS 3, IRBIS 3 View, IRBIS 3 Plus, IRBIS 3 Professional, IRBIS 3 Control, IRBIS 3 Online, IRBIS 3 Process, IRBIS 3 Active, IRBIS 3 Mosaic, IRBIS 3 Vision
