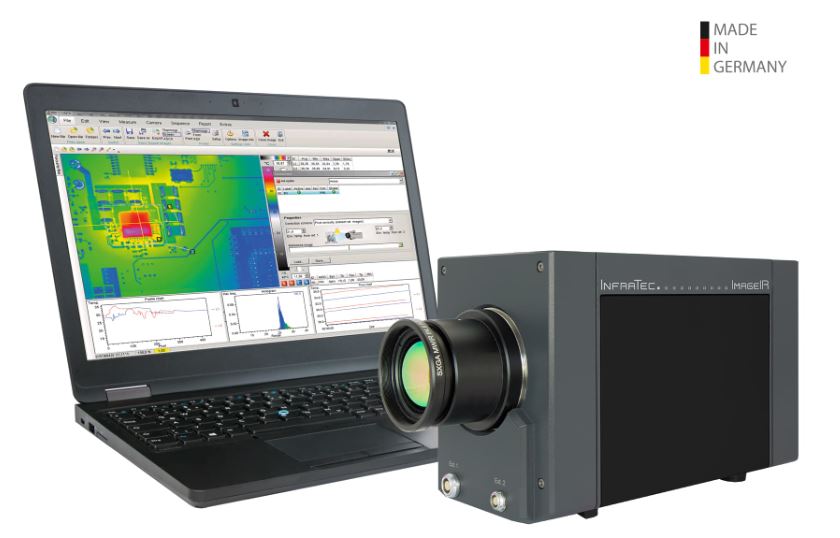

ImageIR 7300

Those who are looking for a powerful thermographic camera to solve fundamental measurement and testing tasks in the fields of industry and science, will find the ImageIR® 7300 a perfect match. Its cooled focal-plane array photon detector provides (640×512) IR pixels and a pitch of 15μm at a constant active detector area.

Users who are testing very small structures on large-scale measurement objects benefit from substantial plus in terms of efficiency compared to smaller detector formats. In addition, you can choose between MCT and InSb detectors. The camera supports recording and storing images and sequences with frequencies up to 630Hz. An internal trigger interface guarantees for precise, repeatable triggering of correspondingly fast processes. Two respective inputs and outputs are used to control the camera or to generate digital control signals for external devices.

Depending on the character of the measurement and testing situation due to its modular design, most diverse thermographic software and high-quality lenses the ImageIR® 7300 is quite easy to adapt to the on-site conditions.

InfraTec ImageIR 7300 Technical Specifications
Camera ModelImageIR 7300
Spectral range2.0 - 5.7 µm
Pitch15 µm
DetectorMCT or InSb
Detector format640 x 512 IR pixels
Image acquisitionSnapshot
Readout modeITR/ IWR
Aperture ratiof/3.0 or f/2.0
Detector coolingStirling cooler
Temperature measuring range-40 - 300°C
Measurement accuracy±2°C or ±2%
Temperature resolution @ 30°CBetter than 0.025 K
Frame rate (full/half/sub frame)Up to 75/242/630 Hz
Window modeYes (full frame/ sub frame)
Focus Manual
Dynamic range14 bit
Integration time1-20,000 µs
InterfacesGigE, HDMI
Trigger 1 IN / 1 OUT, TTL
Tripod adapter1/4" and 3/8" photo thread, 2x M5
Power supply24V DC, wide-range power supply (100-240)V AC
Storage and operation temperature(-40 - 70)°C, (-20 - 50)°C
Protection degreeIP54, IEC 60529
Dimensions, weight235 x 120 x 160 mm, 3.3Kg (without lens)
Analysis and evaluation softwareIRBIS 3, IRBIS 3 View, IRBIS 3 Plus, IRBIS 3 Professional, IRBIS 3 control, IRBIS 3 online, IRBIS 3 process, IRBIS 3 active, IRBIS 3 mosaic, IRBIS 3 vision
