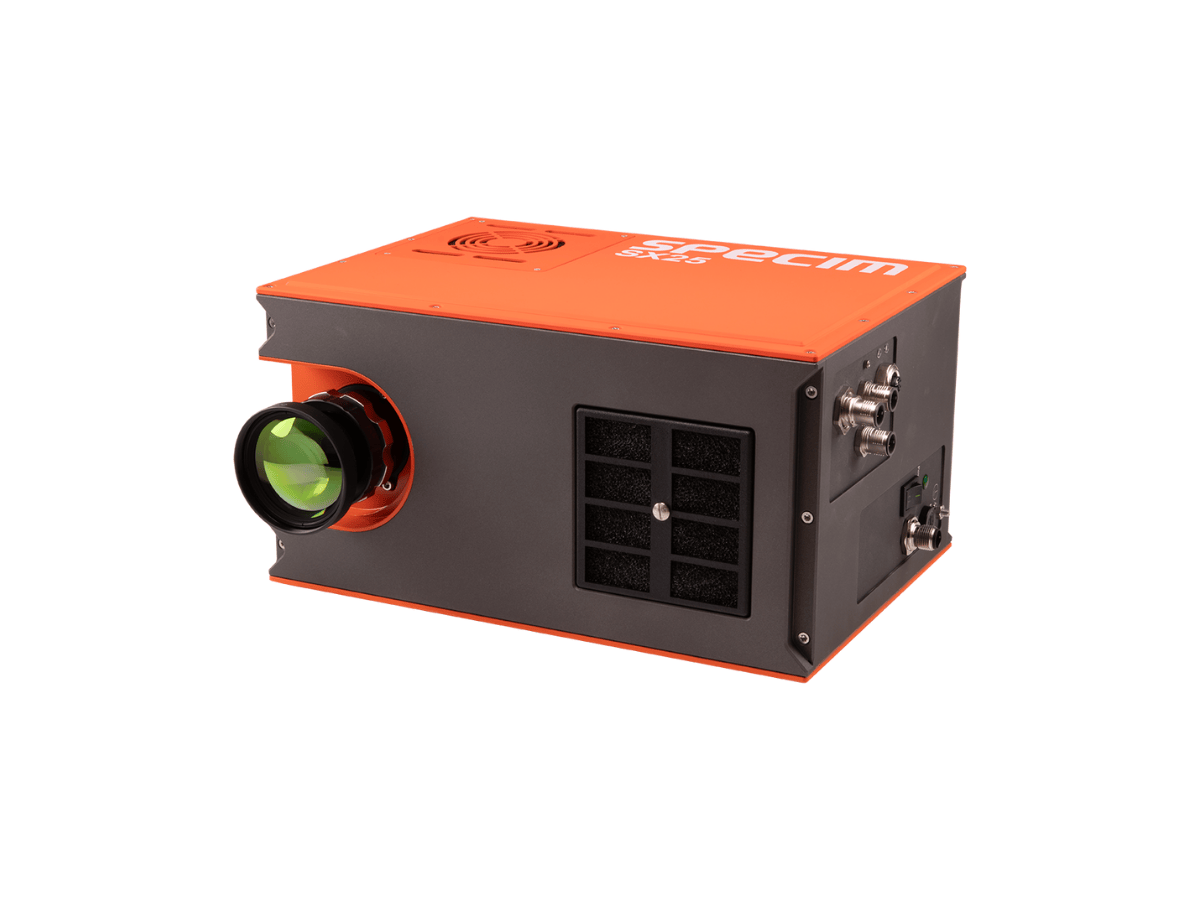

Specim SX25 Image

The Specim SX25 is a high-resolution short-wave infrared (SWIR) hyperspectral camera designed for the most demanding material analysis applications. Operating in the 960–2500 nm range, it delivers 640 spatial pixels, up to 392 selectable spectral bands, 8 nm spectral resolution, and a superior 1500:1 signal-to-noise ratio ideal for capturing even the most closely spaced spectral features with exceptional precision and data quality.

With advanced features such as built-in image correction and unified spectral calibration between units, the Specim SX25 ensures reliable and repeatable results across setups and users. The Specim SX25 is the top choice for research, laboratory, and industrial applications where precision, repeatability, and efficiency are essential.

Specim SX25 Technical Specifications
Spectral CameraSX25
Spectral Range960-2500 nm
Spectral Resolution (FWHM)8 nm
Spectral Sampling/Pixel4 nm
Spectral Bands392
F-Number2.0
Optics Magnification0.8
Effective Pixel Size18.75 µm (at fore lens image plane)
Effective Slit Width37.5 µm (at fore lens image plane)
Effective Slit Length12 mm (at fore lens image plane)
Dynamic Range73 dB = 4500:1
SNR Maximum1500
Spatial Samples640
Bit Depth16
Max Frame Rate162 FPS
Binning1,2,4 spectral and spatial
ROIFreely selectable multiple bands of interest (In CameraOS)
Pixel Operability99.5%
Image CorrectionsNUC, BPR, AIE
Dark Level StabilizationYes
Sensor MaterialMCT
Integrated CoolerStirling
Fore Lens FOV Options38° OLETS17, OLESMacro, 66° OLES9
Camera Digital Data Output/Control InterfaceGigE Vision / Ethernet
ConnectorsEthernet, Aux, Power, Trig In, Trig Out
IPIP40
Dimensions (L x W x H)280 mm x 200 mm x 150 mm
Weight5.3 kg
