- 2 years warranty
- Spectrometer compatible
- Thermal imaging of hot objects
- High sensitivity for low-light conditions
- Extending SWIR imaging to the visible
- Cooled operation for low light-level imaging
- Flexible programming in an open architecture
- CameraLink and triggering for high speed imaging
- Extended coverage from SWIR into the visible range
Features
Applications
- R & D (SWIR range)
- Hyperspectral imaging
- Semiconductor inspection
- High temperature thermography

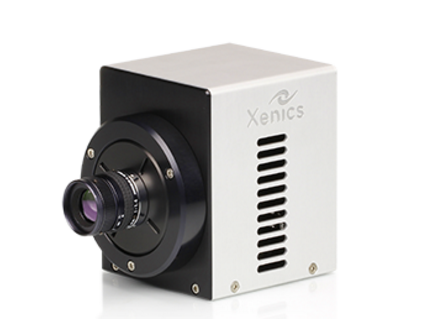

In one compact housing, the Xeva-1.7-320 digital camera combines a thermo-electrically cooled InGaAs detector head and the control and communication electronics. The Xeva-1.7-320 unit is available with standard (up to 1.7 µm) InGaAs detector arrays and comes in various speed versions: 60 Hz, 100 Hz and 350 Hz. It allows you to choose the most suitable detector-camera configuration for your specific application. The camera head interfaces to a PC via standard USB or CameraLink.
Each camera is delivered with a graphical user interface Xeneth, which offers direct access to various camera settings such as exposure time and operating temperature. The software tools include two-point non-uniformity correction and bad pixel replacement.
| Camera Model | Xeva-1.7-320 |
|---|---|
| Detector type | InGaAs |
| Spectral range | 0.9 μm to 1.7 μm (VisNIR optional 0.4 to 1.7 μm) |
| Image format | 320 (w) x 256 (h) pixels |
| Pixel pitch | 30 μm |
| Array cooling | TE1 - cooled (Optional: TE3) |
| Pixel operability | >99% |
| Focal length | Broad selection of lenses available |
| Optical interface | C-mount Spectrograph fixation holes |
| Max frame rate (full frame) | 60 z, 100 z, or 350 Hz |
| Integration type | Snapshot |
| Integration time range | 1 μs - 100 s |
| Noise level: Low gain | 6 AD counts on 14 bit |
| Noise level: High gain | 15 AD counts on 14 bit |
| S/N ratio: Low gain | 68 dB |
| S/N ratio: High gain | 60 dB |
| Analog-to-Digital (ADC) | 12 or 14 bit |
| Command and control | USB 2.0 |
| Image acquisition | USB 2.0 or CameraLink |
| Trigger | TTL Levels |
| Graphical user interface | Xeneth Advanced |
| Power consumption | <4 W without TEC operation; 25 W at maximum cooling |
| Power supply | DC 12 V |
| Camera cooling | Forced convection cooling |
| Ambient operating temperature range | 0°C to 50°C |
| Dimensions (w x h x l) - excluding lens | 90 x 110 x 110 mm |
| Weight (excluding lens) | +/- 1.8 kg |
