- 2 years warranty
- CameraLink or Ethernet standard interfaces
- Extreme short 100 nsec integration time
- Flexible programming in an open architecture
- High sensitivity and excellent image quality
- Programmable trigger out
- SWaP (Small size, weight and power)
Features
Applications
- Laser gated imaging
- Measurement systems needing synchronisation of the camera with a pulsed laser
- Imaging of hot or moving objects such as light bulb or turbine blade inspection
- R&D (SWIR) with short integration times

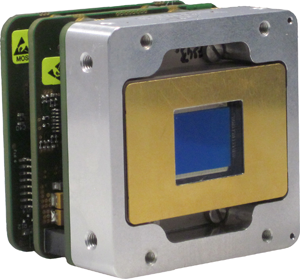

The XSW-320 Gated SWIR OEM module operates in the 0.9 to 1.7 µm spectral band and provides extremely short integration times (down to 100 ns). It's InGaAs detector has a resolution of 320 x 256 pixels and a pixel pitch of 20 µm.
A special feature of the XSW-320 Gated is the programmable trigger-out delay between the internally generated trigger-out pulse and the start of integration. The exposure time of the sensor is configurable from 100 ns up to 1 ms in steps of 100 ns, or 1 ms to 40 ms (standard mode).
With all these features, the XSW-320 Gated is the perfect SWIR OEM module for SWIR gated imaging, the inspection of light bulbs and SWIR imaging of hot or fast moving objects.
| Camera Model | XSW-320 Semtec Gated | XSW-320-CL Gated | XSW-320-GigE Gated |
|---|---|---|---|
| Detector type | InGaAs Focal Plane Array (FPA) ROIC with CTIA topology | InGaAs Focal Plane Array (FPA) ROIC with CTIA topology | InGaAs Focal Plane Array (FPA) ROIC with CTIA topology |
| Image format | 320 (w) x 256 (h) pixels | 320 (w) x 256 (h) pixels | 320 (w) x 256 (h) pixels |
| Pixel pitch | 20 μm | 20 μm | 20 μm |
| Spectral range | 0.9 μm to 1.7 μm | 0.9 μm to 1.7 μm | 0.9 μm to 1.7 μm |
| Pixel operability | > 99 % | > 99 % | > 99 % |
| Array cooling | TE1-stabilized | TE1-stabilized | TE1-stabilized |
| ROIC noise | 60 e- | 60 e- | 60 e- |
| Dark current | 0.19 x 10⁶ e-/s/pixel or 30 fA @ 200 mV bias at 288 K | 0.19 x 10⁶ e-/s/pixel or 30 fA @ 200 mV bias at 288 K | 0.19 x 10⁶ e-/s/pixel or 30 fA @ 200 mV bias at 288 K |
| Full well capacity | 125 k e- | 125 k e- | 125 k e- |
| Maximum frame rate (full frame) | 400 Hz | 400 Hz | 400 Hz |
| Min region size | 32 x 4 | 32 x 4 | 32 x 4 |
| Exposure time range | 0.1 µs to 40 ms | 0.1 µs to 40 ms | 0.1 µs to 40 ms |
| Readout mode | Integrate Then Read (ITR) | Integrate Then Read (ITR) | Integrate Then Read (ITR) |
| Noise | 110 e- | 110 e- | 110 e- |
| Dynamic range | 61 dB | 61 dB | 61 dB |
| Analog-to-Digital (ADC) | 14 bits | 14 bits | 14 bits |
| On-board image processing | Auto-Gain, Auto-Offset, Auto-Exposure | Auto-Gain, Auto-Offset, Auto-Exposure | Auto-Gain, Auto-Offset |
| Optical interface | C-mount | C-mount | C-mount |
| Digital output format | 16bitDV/BT.656 | CameraLink | GigE Vision |
| Module control | Samtec | CameraLink | GigE Vision |
| Trigger | Trigger in or out (configurable) | Trigger in or out (configurable) | Trigger in or out (configurable) |
| Power consumption | 2.5 W | 2.8 W | 4 W |
| Power supply | DC 12 V | DC 12 V | DC 12 V |
| Ambient operating temperature range | -40ºC to 70ºC | -40ºC to 70ºC | -40ºC to 70ºC |
| Storage temperature range | -40ºC to 85ºC | -40ºC to 85ºC | -40ºC to 85ºC |
| Dimensions (width x height x length) - excluding lens (approximately) | 45 x 45 x 51 mm | 45 x 45 x 55 mm | 45 x 45 x 65 mm |
| Weight module | 120 g | 129 g | 165 g |
