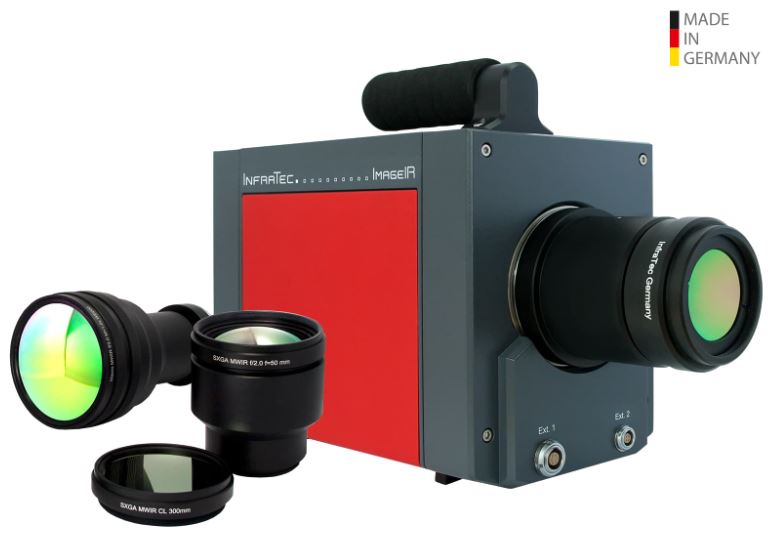

ImageIR 8300 hp

With its ImageIR 8300 hp, InfraTec introduces another top level thermographic camera model belonging to the ImageIR® high-end camera series.

The implementation of a digitally interfaced (640 × 512) pixel MWIR detector now allows 355 Hz full-frame real-time imaging without compromising any thermal accuracy. The ImageIR 8300 hp and its cooled focal-plane array photon detector reach an outstanding thermal resolution better than 0.02 K.

The new version was developed for most demanding operations in research and development and process monitoring fields. Its modular structure consisting of the optical, detector and interface section, makes the camera easily compatible to the related applications and for tailored configurations. An integrated trigger interface guarantees a repeatable high-precision triggering of quick procedures. Multiple configurable digital inputs and outputs serve as control ports for the camera or as generator of digital control signals for external devices. The optical channel consists of the exchangeable infrared lens as well as application-specific apertures, filters and reference elements.

All exchangeable ImageIR 8300 hp standard lenses can be equipped with a motorized focus unit easily operable from the camera‘s application software. It allows precise, fast and remotely controlled motorised focusing and is part of the autofocus function.

InfraTec ImageIR 8300 hp Technical Specifications
Camera ModelImageIR 8300 hp
Spectral range2.0 - 5.7 µm
Pitch15 µm
DetectorMCT or InSb
Detector format640 x 512 pixels
Image format with opto-mechanical MicroScan (IR pixels)1,280 x 1,024 pixels
Image acquisitionSnapshot
Readout modeITR / IWR
Aperture ratiof/3.0
Detector coolingStirling cooler
Temperature measuring range(-40 - 1,500)°C, up to 3,000°C
Measurement accuracy± 1 °C or ± 1%
Temperature resolution @ 30 °CBetter than 0.02K
Frame rate (full/half/quarter/sub frame)Up to 355/670/1,200/5,000 Hz
Window modeYes
FocusManual, motorized or automatically
Dynamic rangeUp to 16 bit
Integration time(0.6 … 20,000) µs
Rotating filter wheelUp to 5 positions
Rotating aperture wheelUp to 5 positions
InterfacesGigE, 10 GigE, 2x CAMLink, HDMI
Trigger3 IN / 2 OUT, TTL
Analogue signals, IRIG-B2 IN / 2 OUT, yes
Tripod adapter1/4" and 3/8" photo thread, 2x M5
Power supply24V DC, wide-range power supply (100-240)V AC
Storage and operation temperature(-40 - 70)°C, (-20 - 50)°C
Protection degreeIP54, IEC 60529
Dimensions, weight(235 x 120 x 160)mm, 3.3 Kg (without lens)
Further functionsMulti Integration Time, HighSense
Analysis and evaluation softwareIRBIS 3, IRBIS 3 View, IRBIS 3 Plus, IRBIS 3 Professional, IRBIS 3 Control, IRBIS 3 Online, IRBIS 3 Process, IRBIS 3 Active, IRBIS 3 Mosaic, IRBIS 3 Vision
