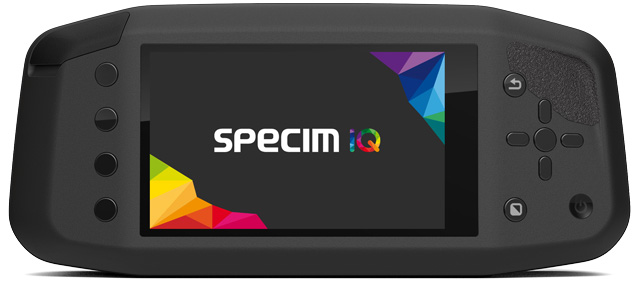

Specim IQ (400 - 1000 nm) | Channel Systems

The full hyperspectral imaging camera with all the needed components, on a compact and lightweight body. IP class protection and fully autonomous operation with chargeable batteries and replaceable standard memory cards.

Tailor the camera functionalities with applications matching your own analysis requirements. Applications define how the camera is used and how the hyperspectral data is processed, analyzed, saved, and visualised.

Use a built-in GPS to record your measurement location to the recorded data. Connect the camera with USB connection to your computer to transfer the data, install applications and adjust the camera settings. Or transfer the data to your computer with SD card.


Spectral Camera	VNIR 400-1000nm (CMOS)
Viewfinder camera	5 Mpix
User interface SW	By Specim
Storage	SD card max 32 GB
Data format	Specim Dataset with ENVI compatible data files
Battery	5200mAh Li-Ion (Type 26650)
Operational Time	Appx. 100 measurements with one SD card and battery
Display & keyboard	4.3" touch screen + 13 physical buttons
Camera interface	USB Type-C
Size	207 x 91 x 74 mm (depth with lens 125,5mm)
Weight	1.3 kg
F/number	F/1.7
Wavelength band	400 - 1000 nm
Spectral resolution FWHM	7 nm
Spatial sampling	512 pix
Spatial bands	204 (Options Bin 2x and Bin 3x)
PeakSNR	>400:1
Object distance	150 - ∞ mm
FOV	31 x 31 deg
FOV at 1 m	0.55 x 0.55 m
Temperature, operational	+0°C- +40°C
Humidity, operational	95% non-condensing
Image Resolution	512 x 512 pix
