- Uniform illumination for consistent spectral accuracy
- 400-2500 nm range for broad coverage
- Robust and reliable
- Scalable - covers 350 mm conveyor belt with one unit, multiple units can be combined for wider coverage
Features
Downloads
Reliable, High-Intensity Lighting for Hyperspectral Imaging

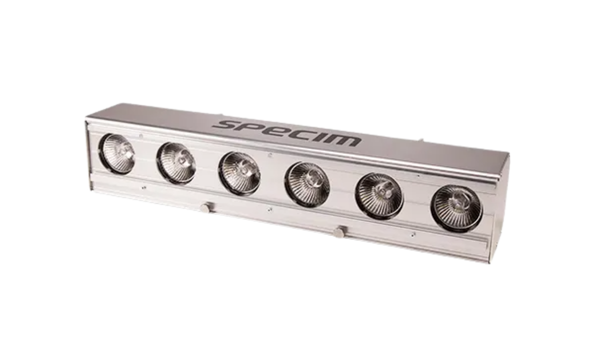

The Specim HI400S halogen illumination unit is designed for hyperspectral imaging in industrial and research environments.
It delivers stable, high-intensity light for accurate and repeatable spectral data across various materials and conditions in the visible to short-wave infrared 400-2500 nm range.
The HI400S offers dependable performance and flexible design, making it the ideal choice for professionals requiring consistent lighting in hyperspectral imaging workflows.
One unit provides optimal illumination for a 350 mm wide conveyor. For wider targets, multiple units can be installed side-by-side.
| Input Voltage | 12 V ± 10% |
|---|---|
| Power consumption | 225 W |

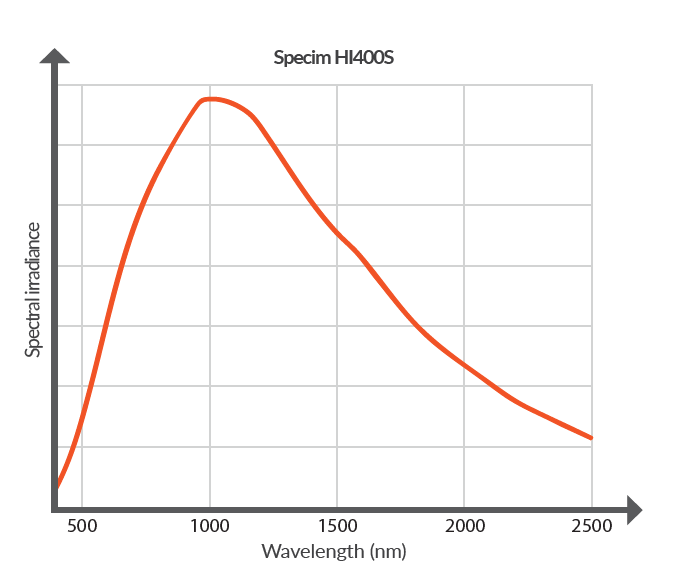

| Wavelength | 400 - 2500 nm |
| Minimum distance from target | 300 mm |
| Weight | 1.5 kg |
| Operating temperature | +5 to +50°C |
| Storage temperature | -20 to +50°C |
| Humidity | Non-condensing |

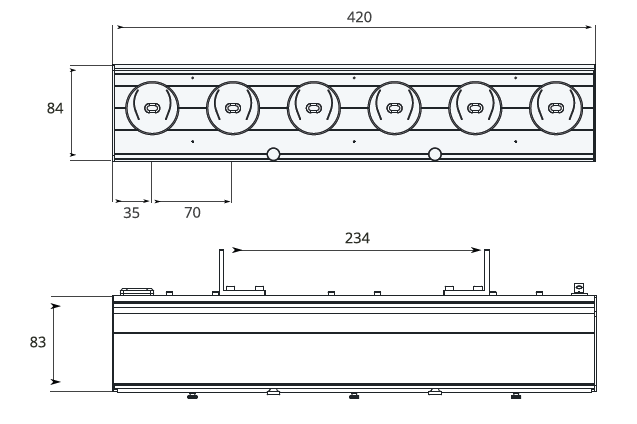

| Size (L x W x H) | 420 x 83 x 84 mm |
| Halogen bulbs | 6 x 35 W |
| Power supply | 300 W |
| Power supply + power cable weight | 1.8 kg |
| Compliance | CE, RoHS, REACH |
