• State-of-the-art 640 × 480 microbolometer detector with 12 μm pitch
• Compact size for industrial thermography applications
• GenICam compliant
• Uncooled operation
• Availability of multiple field-of-view options
Features
Applications
- Process Monitoring
- Medical
- Scientific & Advanced Research
Documents

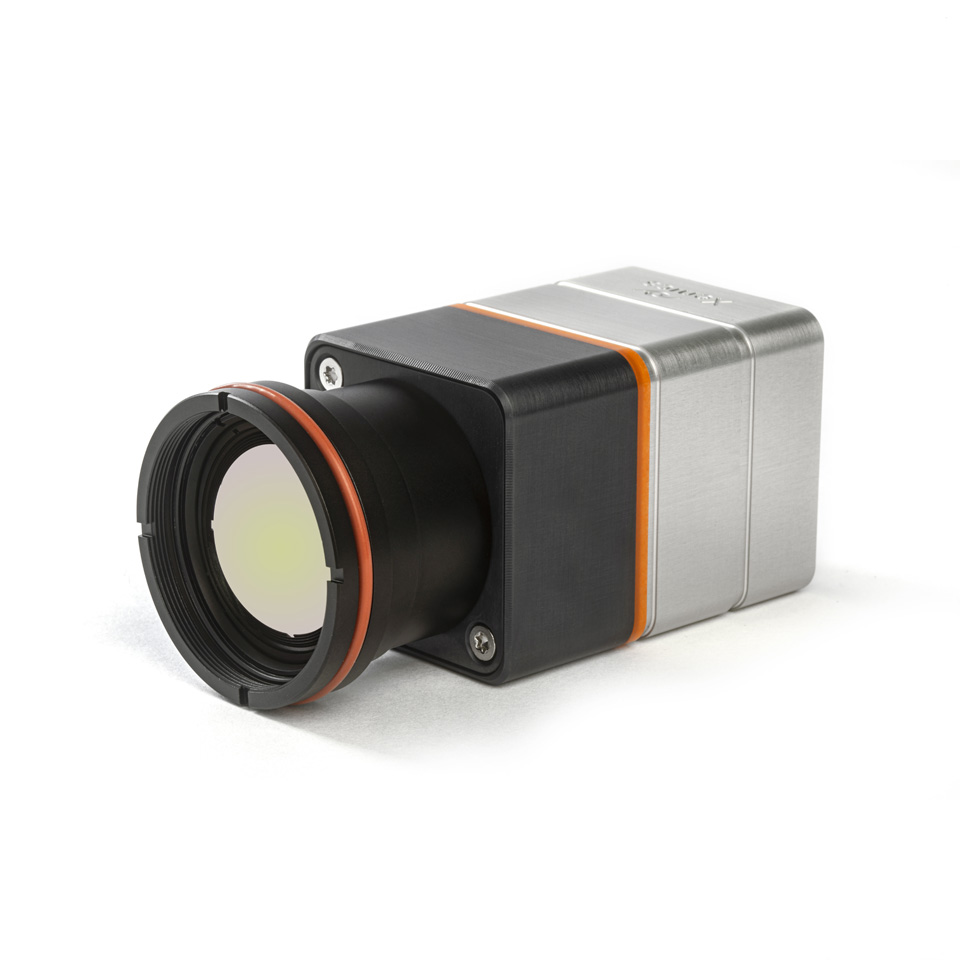

Compact, uncooled thermographic camera
The Ceres T 640 series is based on the Dione 640 OEM thermal imaging core with an uncooled 12 μm pitch microbolometer detector with a 640 × 480 resolution and NETD of less than 60 mK.
The cameras outputs full frame images at 60 Hz via a CameraLink or GigE interface.
All Ceres T 640 versions are GenICam compliant, allowing easy integration in demanding industrial thermography applications. The Ceres T 640 is available with multiple HFOV (Horizontal Field-of-View) options: either 8, 12, 24 or 50 degrees.
The compact Ceres T 640 series find application in process monitoring, medical and scientific and advanced research.
| Camera Specifications | Ceres T 640 CL | Ceres T 640 GigE |
|---|---|---|
| Dimensions (excluding lens) | 45 x 45 x 67 | 45 x 45 x 75 |
| Weight (excluding lens)) | 242 [Ceres T 640 8 CL] | 249 [Ceres T 640 8 GigE) |
| 299 [Ceres T 640 12 CL] | 306 [Ceres T 640 12 GigE] | |
| 224 [Ceres T 640 24 CL] | 231 [Ceres T 640 24 GigE] | |
| 371 [Ceres T 640 50 CL] | 378 [Ceres T 640 50 GigE] | |
| Optical interface | M24 x 0.5 [Ceres T 640 24, Ceres T 640 50] | M24 x 0.5 [Ceres T 640 24, Ceres T 640 50] |
| M34 x 0.5 [Ceres T 640 8, Ceres T 640 12] | M34 x 0.5 [Ceres T 640 8, Ceres T 640 12] | |
| Connector I/O | Unified connector [Lemo 1B] | Unified connector [Lemo 1B] |
| Ambient operating temperature range (°C) | From -40 to +70 | From -40 to +70 |
| Storage temperature | From -40 to +85 | From -40 to +85 |
| Power consumption (W) | 3.5 | 4 |
| Power supply voltage | DC 12 V | DC 12 V |
| Shock | 40 g, 11 ms, MIL-STD810G | 40 g, 11 ms, MIL-STD810G |
| Vibration | 5 g [20 to 2000 Hz], MIL-STD810G | 5 g [20 to 2000 Hz], MIL-STD810G |
| IP rating | IP40 | IP40 |
| Regulatory compliance | RoHS | RoHS |
| Image format (pixels) | 640 x 480 | 640 x 480 |
| Pixel pitch (μm) | 12 | 12 |
| Detector type | Microbolometer | Microbolometer |
| Integration type | Rolling Shutter | Rolling Shutter |
| Active area and diagonal (mm) | 7.68 x 5.76 [diagonal 9.6] | 7.68 x 5.76 [diagonal 9.6] |
| Detector NETD [Noise Equivalent Temperature Difference] [mK] | <60 [at 30 Hz, 300 K, F/1] | <60 [at 30 Hz, 300 K, F/1] |
| Spectral range (nm) | 8 - 14 | 8 - 14 |
| Pixel operability | >99.5% [excluding 3 peripheral rows and columns] | >99.5% [excluding 3 peripheral rows and columns] |
| Max frame rate (Hz) (full frame) | 60 | 60 |
| Integration time range (µs) | 20 - 65 (recommended) | 20 - 65 (recommended) |
| Min region size (pixels) | 80 x 80 | 80 x 80 |
| Analog-to-Digital [ADC] [bits] | 16 | 16 |
| Command and control | CL | GigE |
| Digital output format | CL | GigE |
| Trigger | Unified connector [Lemo 1B] | Unified connector [Lemo 1B] |
| Calibration pack 1 [°C] | From -20 to 120 | From -20 to 120 |
| Calibration pack 2 [°C] | From 50 to 400 | From 50 to 400 |
| Temperature measurement accuracy | Either +/-2°C or +/-2%, whichever is greatest | Either +/-2°C or +/-2%, whichever is greatest |
| Operating temperature range [housing temperature] [°C] | 10 - 35 | 10 - 35 |
| Part Number | XEN-000728 [Ceres T 640 8 CL] | XEN-000725 [Ceres T 640 8 GigE] |
| XEN-000727 [Ceres T 640 12 CL] | XEN-000724 [Ceres T 640 12 GigE] | |
| XEN-000726 [Ceres T 640 24 CL] | XEN-000723 [Ceres T 640 24 GigE] | |
| XEN-000682 [Ceres T 640 50 CL] | XEN-000681 [Ceres T 640 50 GigE] |
