- Low power consumption for easy integration
- High resolution (640x480 pixels)
- Easy connectivity
- Small size, 17μm pixel pitch
- Higher speed imaging (up to 60 Hz)
- Windowing mode to increase frame rate
Features
Designed for Use In
- UAV/UGV
- Gimbal
- Night Vision
- Thermal sights
- Border security
- Fire fighting
- Driver assistance
- Police surveillance
- Search & Rescure (SAR)

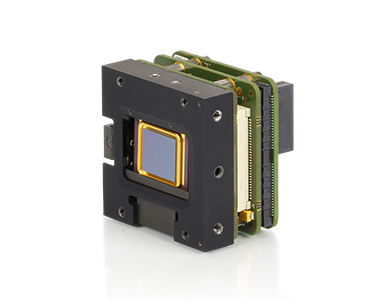

The XTM+ 640 is a high resolution uncooled thermal OEM module with 'Ready-to-Integrate' functionality.
This new OEM module further enhances the versatility of the original XTM module with the ability to provide frame rates up to 60 Hz, onboard image processing and interface controls, and a lower Noise Equivalent Temperature Difference (NETD) of 50 mK. The new XTM+ 640 also features improved pixel operability.
An extensive selection of interface options to choose from makes integrating the XTM+ 640 into your system easy and quick. This module is the perfect solution for those looking for effective thermal imaging in a broad range of OEM applications.
The XTM+ 640 retains the compact form and lower power consumption of the original XTM thermal OEM module.
| Camera Model | XTM+ 640 GigE | XTM+ 640 CL | XTM+ 640 PAL/NTSC |
|---|---|---|---|
| Image format | 640 (w) x 480 (h) pixels | 640 (w) x 480 (h) pixels | 640 (w) x 480 (h) pixels |
| Pixel pitch | 17 μm | 17 μm | 17 μm |
| Detector type | a-Si microbolometer | a-Si microbolometer | a-Si microbolometer |
| Integration type | Rolling shutter | Rolling shutter | Rolling shutter |
| Active area and diagonal | 10.88 mm x 8.16 mm (13.6 mm diagonal) | 10.88 mm x 8.16 mm (13.6 mm diagonal) | 10.88 mm x 8.16 mm (13.6 mm diagonal) |
| Detector NETD (Noise Equivalent Temperature Difference) | <50 mK (at 30 Hz, 300 K, F/1) | <50 mK (at 30 Hz, 300 K, F/1) | <50 mK (at 30 Hz, 300 K, F/1) |
| Spectral range | 8 μm to 14 μm | 8 μm to 14 μm | 8 μm to 14 μm |
| Pixel operability | >99.5% | >99.5% | >99.5% |
| Maximum frame rate (full frame) | 60 Hz or 9 Hz | 60 Hz or 9 Hz | 25 Hz (PAL), 30 Hz or 9 Hz (NTSC) |
| Integration time range | 1 μs - 80 μs | 1 μs - 80 μs | 1 μs - 80 μs |
| Region of interest | Yes | Yes | Yes |
| Minimum region size | 160 x 120 pixels | 160 x 120 pixels | 160 x 120 pixels |
| Analog to Digital (ADC) | 16 bits | 16 bits | 16 bits |
| Command and control | GigE Vision | CameraLink | RS232 (XSP) |
| Digital output format | 16 bit GigE Vision | 16 bit GigE Vision | 16 bit GigE Vision |
| Trigger | in or out via SMA (configurable) (not for 9 Hz) | in or out via SMA or CL-CC1 (configurable) (not for 9 Hz) | in or out via SMA (configurable) (not for 9 Hz) |
| Dimensions (W x H x L) excluding lens | 45 x 45 x 63 mm | 45 x 45 x 45 mm | 45 x 45 x 47 mm |
| Weight (excluding lens) | 125 g | 84 g | 99 g |
| Optical interface | M42 or M34 x 0.75 | M42 or M34 x 0.75 | M42 or M34 x 0.75 |
| Connector GigE | RJ-45 | N/A | N/A |
| Connector CameraLink | N/A | Standard SDR | N/A |
| Connector power | Hirose HR10-7R-SA(73) | Hirose HR10-7R-SA(73) | Hirose HR10-7R-SA(73) |
| Connector trigger | SMA | SMA | SMA |
| Connector analog | N/A | N/A | BNC |
| Connector RS232 | N/A | N/A | RJ-12 |
| Ambient operating temperature range | -40ºC to 60ºC | -40ºC to 60ºC | -40ºC to 60ºC |
| Storage temperature range | -40ºC to 85ºC | -40ºC to 85ºC | -40ºC to 85ºC |
| Power consumption | 4.5 W | 2 W | 2 W |
| Power supply | DC 12V | DC 12V | DC 12V |
