Features

  • 2 years warranty
  • World's fastest SWIR linescan imaging up to 260 kHz
  • High resolution
  • Low noise, low dark current
  • CoaXPress interfacing for reliable streaming of data
  • Versatility with 4 gain modes

Applications

  • Silicon wafer inspection
  • TFT screen inspection
  • Food and agricultural sorting
  • Machine vision
  • Process monitoring

Documents

PDF icon Xenics Manx Series Brochure

Links

Xenics Manx SQ Series Product Page

Request A Quote

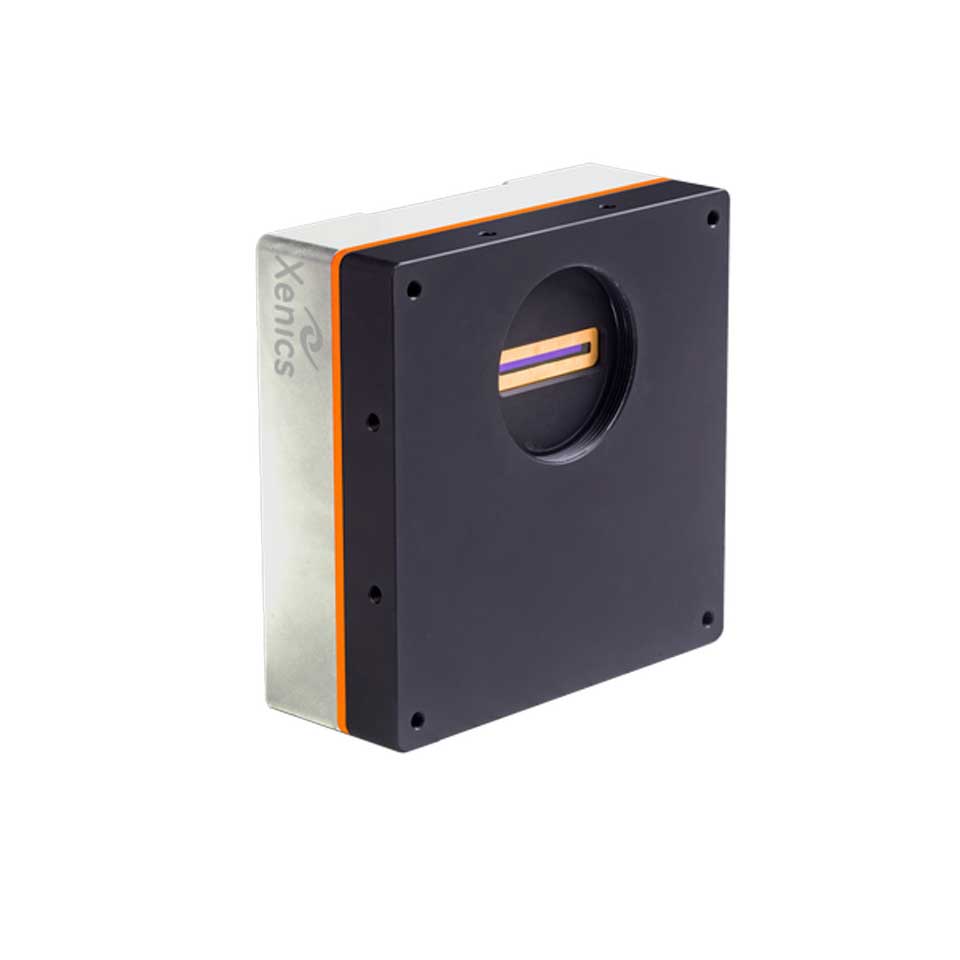

Xenics Manx

The Xenics Manx is a high-performance short wave infrared (SWIR) InGaAs camera providing high speed and quality linescan imaging. The Manx is capable of reaching line rates of up to 254 kHz making it the fastest linescan InGaAs camera available on the market.

The Manx is able to provide up to 2048 pixel resolution. It also presents the lowest noise performance record for a 2048 pixel SWIR linear camera, combined with excellent dynamic range. The use of CoaXPress interfacing enables fast and reliable data transfer. The Manx is offered in three different resolutions of 512, 1024, or 2048 pixels.

Xenics Manx SQ Technical Specifications
Camera SpecificationsManx 512 SQ CXP 130/260Manx 1024 SQ CXP 130/260Manx 2048 SQ CXP 130/260
Dimensions (mm)102 x 102 x 40102 x 102 x 40102 x 102 x 40
Weight (excluding lens)900 g900 g900 g
Optical interfaceC-mount or M42C-mount or M42C-mount or M42
Connector CXP4 connectors - type DIN 1.0/2.34 connectors - type DIN 1.0/2.34 connectors - type DIN 1.0/2.3
Connector powerOnly PoXCPOnly PoXCPOnly PoXCP
Connector triggerLemo 18.310 (unified connector)Lemo 18.310 (unified connector)Lemo 18.310 (unified connector)
Sensor format (pixels)51210242048
Pixel pitch (um)12.512.512.5
Pixel height (um)12.512.512.5
Detector typeInGaAs photodiode array with CTIA ROICInGaAs photodiode array with CTIA ROICInGaAs photodiode array with CTIA ROIC
Sensor temperature stabilizationTE coolerTE coolerTE cooler
Integration typeSnapshot - global shutterSnapshot - global shutterSnapshot - global shutter
Optical fill factor100%100%100%
Spectral range (nm)900 - 1700900 - 1700900 - 1700
Quantum efficiency~80% [typical peak value]~80% [typical peak value]~80% [typical peak value]
Gain modes4 different gain modes selectable: High (HG), Medium (MG), Medium Low (ML), Low (LG)4 different gain modes selectable: High (HG), Medium (MG), Medium Low (ML), Low (LG)4 different gain modes selectable: High (HG), Medium (MG), Medium Low (ML), Low (LG)
Full well capacities (electrons)200k; 1.2M; 5.6M; 25M200k; 1.2M; 5.6M; 25M200k; 1.2M; 5.6M; 25M
Read noise (electrons)300 [HG]; 750 [MG]; 2600 [ML]; 10200 [LG]300 [HG]; 750 [MG]; 2600 [ML]; 10200 [LG]300 [HG]; 750 [MG]; 2600 [ML]; 10200 [LG]
Dark current (electrons/second)1.17M [at 35°C sensor temp and 100 mV reverse bias]1.17M [at 35°C sensor temp and 100 mV reverse bias]1.17M [at 35°C sensor temp and 100 mV reverse bias]
Read out modeIWRIWRIWR
Pixel operability>99.6%>99%>98%
Max line rate (kHz)127 (130 version), 254 (260 version)127 (130 version), 254 (260 version)127 (130 version), 254 (260 version)
Analog to Digital (bits)141414
Command and controlCoaXPressCoaXPressCoaXPress
Digital output formatCoaXPress (16 bit)CoaXPress (16 bit)CoaXPress (16 bit)
TriggerTrigger connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CXP trigger: 1 trigger inTrigger connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CXP trigger: 1 trigger inTrigger connector: 2 trigger in & 2 trigger out - LVCMOS 3.3 V; CXP trigger: 1 trigger in
Operating case temp (°C)From -40 to +60From -40 to +60From -40 to +60
Storage temperature (°C)From -40 to +85From -40 to +85From -40 to +85
Power consumption (W)111111
Power supply voltageDC 12 VDC 12 VDC 12 V
Shock40 g, 11 ms, according to MIL-STD810G40 g, 11 ms, according to MIL-STD810G40 g, 11 ms, according to MIL-STD810G
Vibration5 g [20 to 2000 Hz], according to MIL-STD810G5 g [20 to 2000 Hz], according to MIL-STD810G5 g [20 to 2000 Hz], according to MIL-STD810G
IP rating IP40IP40IP40
Regulatory complianceCE, RoHSCE, RoHSCE, RoHS
